Perlisten Audio D12s THX Dominus Subwoofer
Gloss Black
£4,200.00
Skip to product information
Perlisten Audio D12s THX Dominus Subwoofer
£4,200.00
An onsite calibration service is available with all Perlisten Audio products. Contact us to discuss more.
D12S SUBWOOFER
Massive bass, minute distortion levels, just as we intended.
MODEL D12s Subwoofer: Small footprint, big sound. Benefiting from many of the technologies of our flagship subs, these sealed subs generate amazing performance in the smallest footprint.
Finishes available:
- High Gloss Black
- High Gloss White
Low Q, shallow rolloff response geared for sound quality and smoothly integrating into the listening room.
Also, a great choice for using multiple subs to optimize in room response and smooth out seat-to-seat variation. The smallest subwoofer in the series, yet packs enough punch to be certified THX Dominus using a pair of D12s subs.
Powered by our 1.5kW amplifier, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds, powerful enough to slam. Ground up drivers developed by our team of engineers. Carbon fibre composite diaphragms, multiple aluminium shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminium voice coil wire are the key ingredients – Proprietary nonlinear modelling techniques allow us to simulate all these components and then optimize for real world driver performance – free air and in box.
Further refinement is done with the aid of Klippel laser measurements to dial things in. All D-Series subs share our 2.4” LCD touchscreen display and ability to control advance settings using our App.
Specification
| Alignment | Acoustic suspension |
| Amplifer | 1.5kW rms short term |
| Display Interface | 2.4" LCD color touchscreen |
| App | iOS and Android |
| Processor | 32-bit ARM Cortex M4, double precision floating point math |
| DSP Engine | Ti DSP 48-bit data paths |
| Driver compliment | 300mm, Carbon fiber diaprhragm +/-30mm linear excursion |
| Reference sensitivity | 92dB / 150mV/ 1.0m |
| Frequency Response THX EQ Boost (Large Room) EQ Cut (Small Room) EQ |
20-289Hz (-6dB) / 16-330Hz (-10dB) 16-289Hz (-6dB) / 14-330Hz (-10dB) 25-289Hz (-6dB) / 19-330Hz (-10dB) |

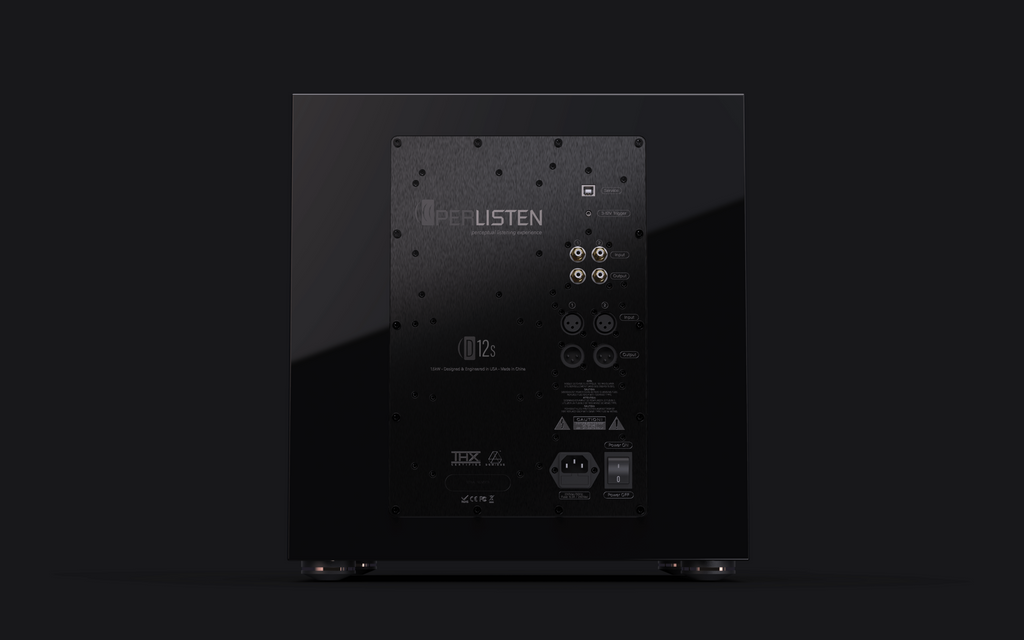

| Inputs | (2) Balanced XLR (2) Unbalanced RCA |
| Outputs | (2) Balanced XLR unbuffered (2) Unbalanced RCA unbuffered |
| Parametric EQ | 10-Band PEQ with 3 user presets |
| Low Pass filter | Bypass, 30-160Hz, slope 6,12,18,24dB/oct |
| Polarity | Normal / inverted |
| Configurable Auto turn-on and 12v Trigger | XLR 1, XLR 1+2, RCA 1, RCA 1+2 |
| Dimensions (HxWxD) | 448 x 420 x 450mm 17.6 x 16.5 x 17.7" |
| Weight | 41.0 kg (90.2 lbs.) |
| Certification | THX Dominus |
| Available finishes | Piano black |
