Perlisten Audio R15s 15" Active Subwoofer with DSP
Perlisten Audio R15s 15" Active Subwoofer with DSP
TINY FRAME - MIGHTY BASS
R-Series subs – Trickle down technology from our flagship D-Series, we’ve developed a line-up of single driver-based subwoofers. Ground up drivers developed by our team of engineers. Glass fiber composite diaphragms, multiple aluminium shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminium voice coil wire are the key ingredients.
Proprietary nonlinear modelling techniques allow us to simulate all these components and then optimize for real world driver performance – free air and in box. Further refinement is done with the aid of our Klippel laser measurement system to dial things in. Powered by our new 1.0kW amplifier here to match the 15” driver, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds ensuring sonic accuracy.
All R-Series subs share our 2.4” LCD touchscreen display and ability to control advance settings using our App.
| Alignment | Acoustic suspension |
| Amplifer | 1.0kW rms |
| Display Interface | 2.4" LCD color touchscreen |
| App | iOS and Android |
| Processor | 32-bit ARM Cortex M4, double precision floating point math |
| DSP Engine | Ti DSP 48-bit data paths |
| Driver compliment | 380mm, Glass fiber diaphragm +/-23.7mm linear excursion |
| Reference sensitivity | 92dB /150mV/ 1.0m |
| Frequency Response THX EQ Boost (Large Room) EQ Cut (Small Room) EQ |
20-388Hz (-6dB) / 16-468Hz (-10dB) 16-388Hz (-6dB) / 14-468Hz (-10dB) 25-388Hz (-6dB) / 19-468Hz (-10dB) |

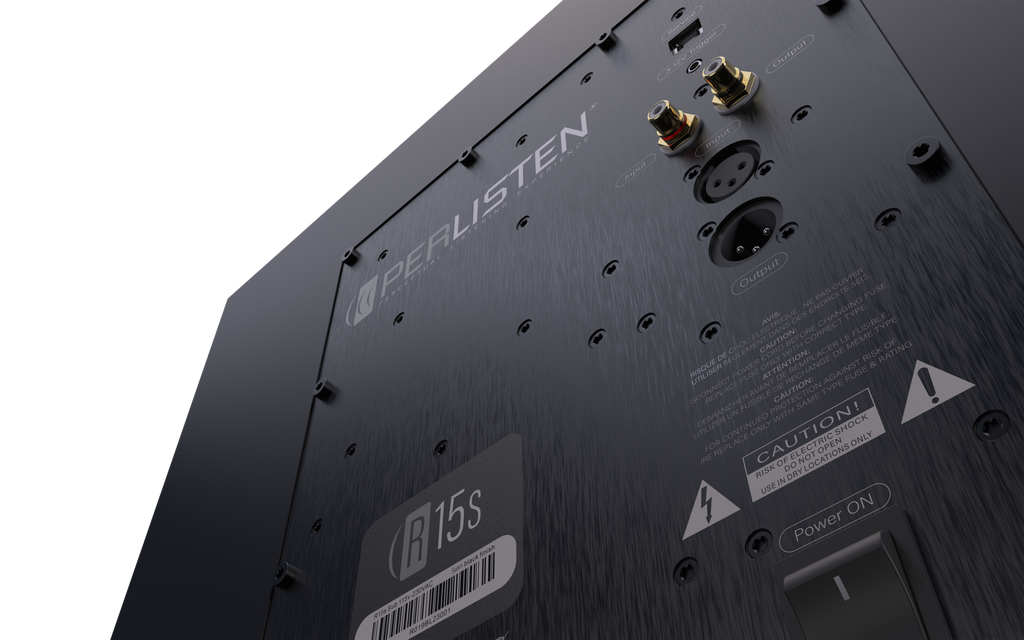

| Inputs | (1) Balanced XLR (1) Unbalanced RCA |
| Outputs | (1) Balanced XLR unbuffered (1) Unbalanced RCA unbuffered |
| Parametric EQ | 10-Band PEQ with 3 user presets |
| Low Pass filter | Bypass, 30-160Hz, slope 6,12,18,24dB/oct |
| Phase | Variable 0-270° |
| Polarity | Normal / inverted |
| Configurable Auto turn-on and 12v Trigger | XLR, RCA |
| Dimensions (HxWxD) | 498 x 460 x 465mm 19.6 x 18.1 x 18.3" |
| Weight overall | 35.5 kg (78.1 lbs.) |
| Available finishes | Satin black |
