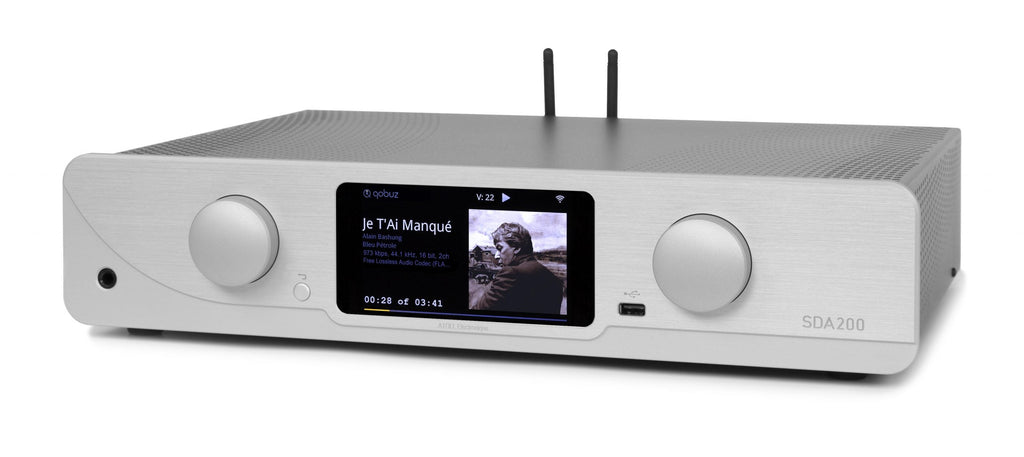

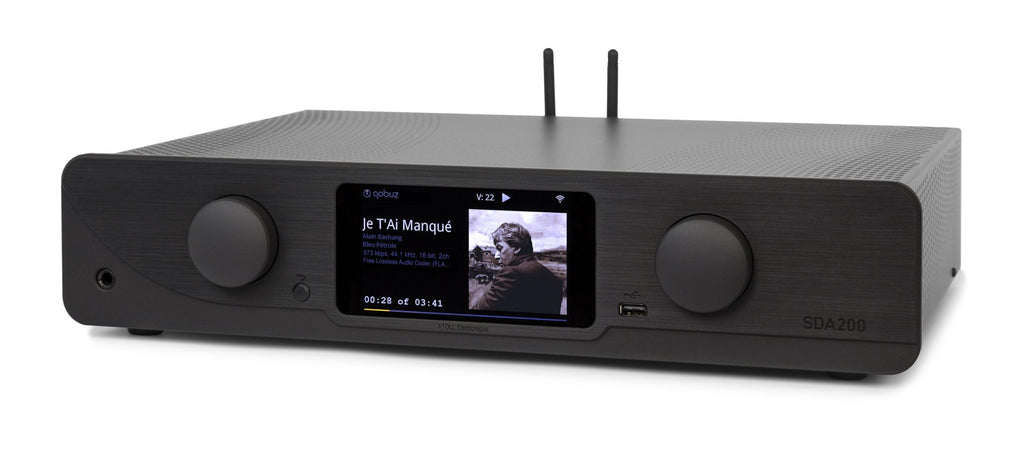

Atoll SDA200 Signature Streaming Amplifier
Atoll SDA200 Signature Streaming Amplifier
Whether it is listening to high-definition streaming music, locally from your network, from a USB key, a hard drive, Bluetooth®, or your favourite internet radio stations, our SDA200 Signature “All-in-one” is totally adapted to the current needs related to the reading of dematerialized music files. It embeds a high-performance converter and can be used as a pure source or as a preamplifier. The SDA200 Signature is additionally equipped with the amplifier part of the IN200 Signature.
STREAMING
You also have direct access from the application to these streaming services: Qobuz, Tidal, Tidal Connect, Deezer, Spotify, and HighResAudio.
During the first use, you will need to enter your username and password. Once your account is valid, you will be able to access all the services linked to your account.
STREAMING WITH SPOTIFY CONNECT
You can access Spotify from the ATOLL Signature app: use your phone, tablet, or computer as a remote control for Spotify.
STREAMING WITH TIDAL CONNECT
You can stream directly from the Tidal app to your ATOLL Streamer, lossless and in high quality.
INTERNET RADIO
This menu gives you access to the internet radio menu, i.e. approximately 100,000 internet radio stations as well as podcasts.
- In WIFI or RJ45 connection, access to internet radios by the Airable system in high definition: choice of more than 100,000 stations, access to podcasts…
- Display of station logos and other information: titles, artists, resolution, etc.
- Possibility of adding each radio station to a “favorites” menu.
ROON COMPATIBILITY
ATOLL Signature network readers: MS120, ST200 Sig, ST300 Sig, SDA200 Sig and SDA300 Sig are now compatible with Roon. To benefit from this service, simply download the latest update online via the Settings/Software update menu. Then, go to Settings/Device ID menu and choose the device model you have from the list: ST200, MS120, SDA200…
EXTERNAL CONTROLS
- Playback of audio files present on the network (DLNA and UPnP compatible) in a wired or Wifi connection.
- Display of names, tags, resolutions and album covers.
- “Gapless” system (no cut between pieces).
- Ability to create playlists.
- External control is possible (by Qobuz, Audirvana, etc.) via the RTSP protocol.

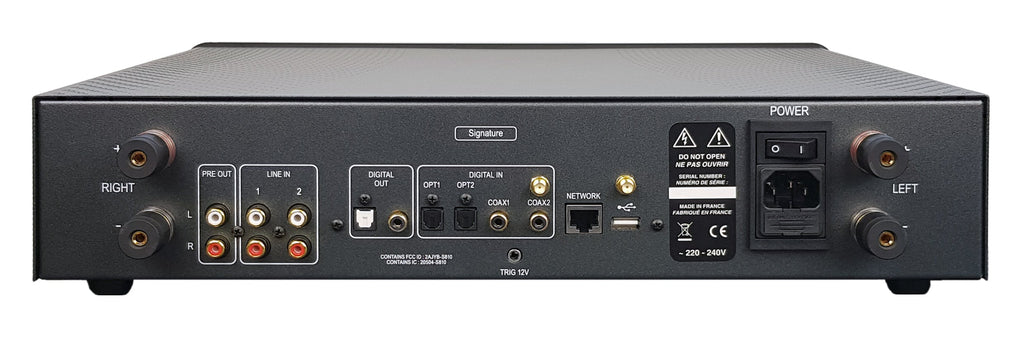

CONNECTIVITY
Inputs
2 Analog inputs – 2 coaxial S/PDIF (PCM1792 24 bits/192 kHz).
2 Toslink optical S/PDIF inputs (24 bits/192 kHz PCM).
2 USB-A inputs (1 front and 1 rear).
1 RJ45 network socket.
1 Bluetooth® receiver (antenna).
Outputs
Speakers.
1 Pre-out output.
1 Coaxial S/PDIF output.
1 Toslink optical S/PDIF output.
1 Trigger output 12V.
1 Headphone output on the front panel (Ø 6,35 mm – 1/4″).
1 Wi-Fi antenna (802.11b/g/n).
Specification
Power supply: 2×340 VA
Wrms/channel/8Ω: 2×120 W
Wrms/channel/4Ω: 2×200 W
Total of capacitors: 65 800 µF
Dynamic: 129 dB
Input impedance: 220 kΩ
Distortion at 1 kHz: 0,05% / (10 W)
Bandwidth: 5 Hz – 100 kHz
Rising time: 2 µs
Sensitivity: 350 mV
Signal/Noise ratio: 129 dB
D/A converter: Burr-Brown PCM1792
Dimensions: 440×365×95 mm
Weight: 13 Kg
