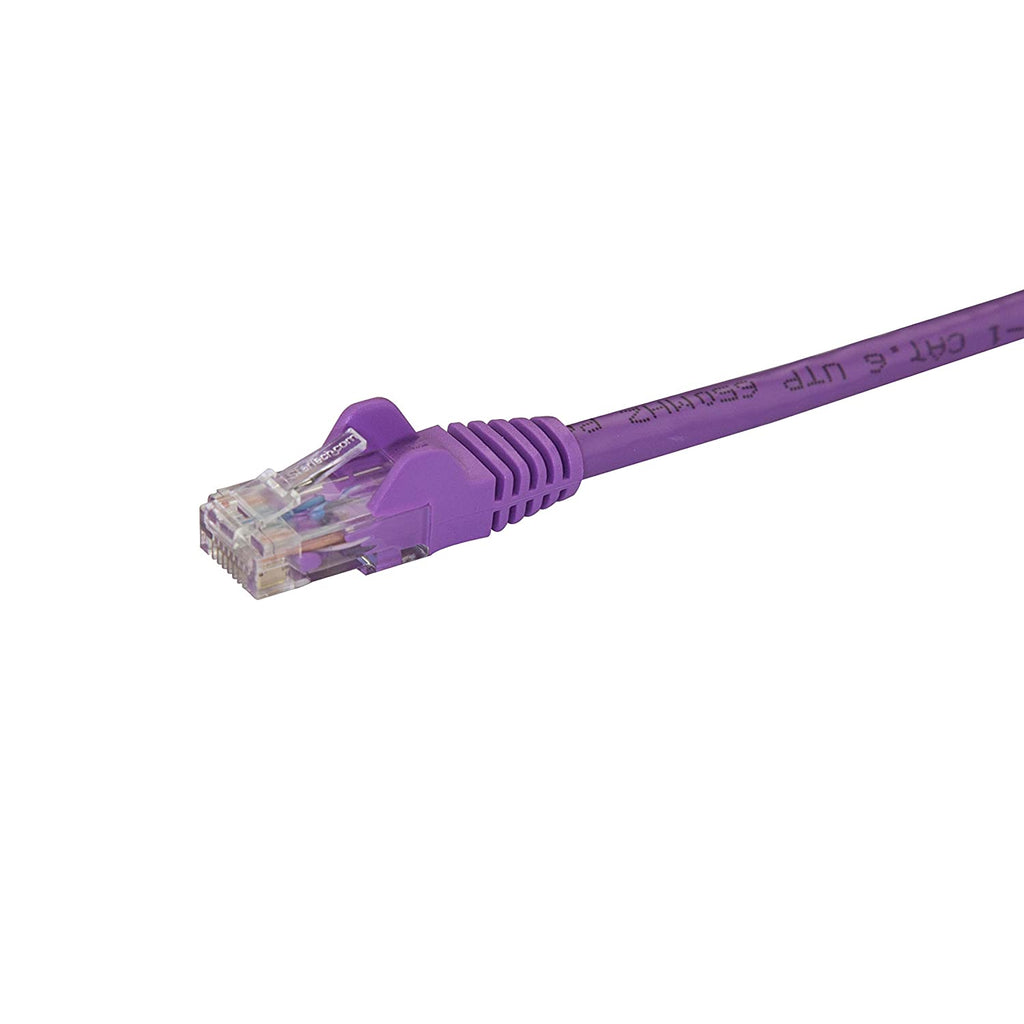

CAT6 UTP LSZH RJ45 - RJ45 cable 0.2m - 100m
0.2m
£2.49
Skip to product information
CAT6 UTP LSZH RJ45 - RJ45 cable 0.2m - 100m
£2.49
Available in set lengths - please note the colour is PURPLE unless otherwise specified.
NOTE - our cable is SOLID COPPER 23AWG unlike cheaper alternatives on Amazon/Ebay which are CCA (copper clad aluminium) which are NOT approved for installation. The CCA cables degrade due to heat dissipation and you'll like have issues quickly. They also have a steeper fall off of frequency / transfer speed on longer length.
Our cables are hand terminated with gold terminals and strain relief boots and are of LSZH standards.
| General | |
| Inner Conductor | 23 AWG plain copper |
| Insulation | High density polyethylene |

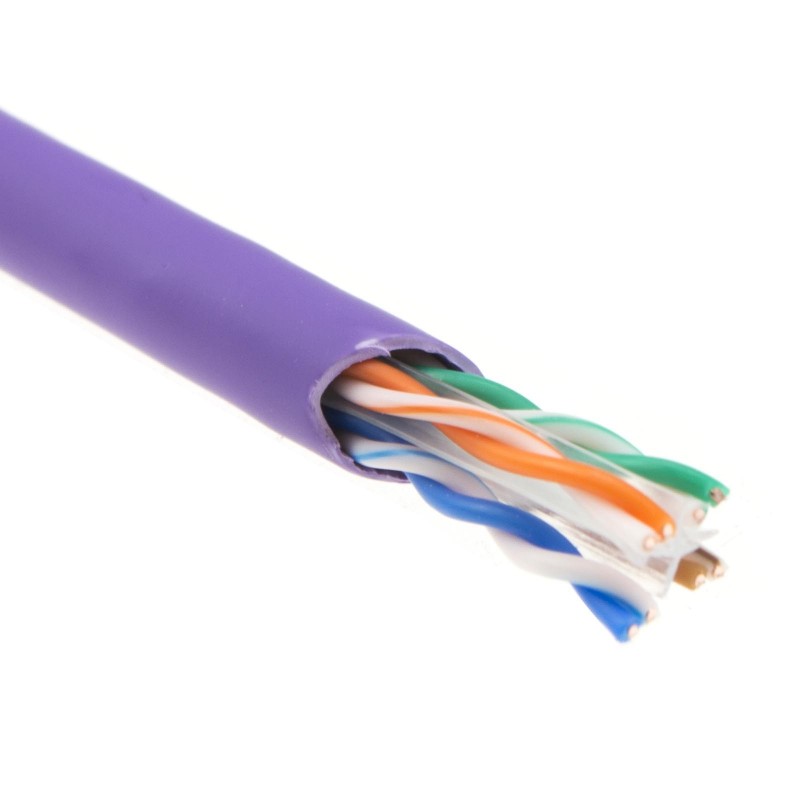

| Construction | 4 twisted pairs cabled together with spline |
| Colour Code | Pair 1:White/Blue-Blue/White Pair 2:White/Orange-Orange/White Pair 3:White/Green-Green/White Pair 4:White/Brown-Brown/White |
| Jacket | Low Smoke Zero Halogen |
| Overall Diameter | 5.5 mm +/- 0.2 mm |
| Weight (Kg/Km) | 39.1 (PVC/PE)/41.2 (LSZH) |
| Min Bending Radius Installation | 50 mm |
| Min Bending Radius Installed | 25 mm |
| Impedance | 100 Ohm +/- 15 Ohm |
| Capacitance | 5.6nF/100 m |
| DC Resistance | 9 Ω/100 m |
| Velocity Ratio | 69% |
| Operating Temperature Range | -20°C to +60°C |
| Installation Temperature Range | 0°C to +50°C |
| Conforms to | ANSI/TIA-568-C Category 6 Specification LSZH Jacket Conforms to IEC 60332-1, IEC 61034 and IEC 60754 |
