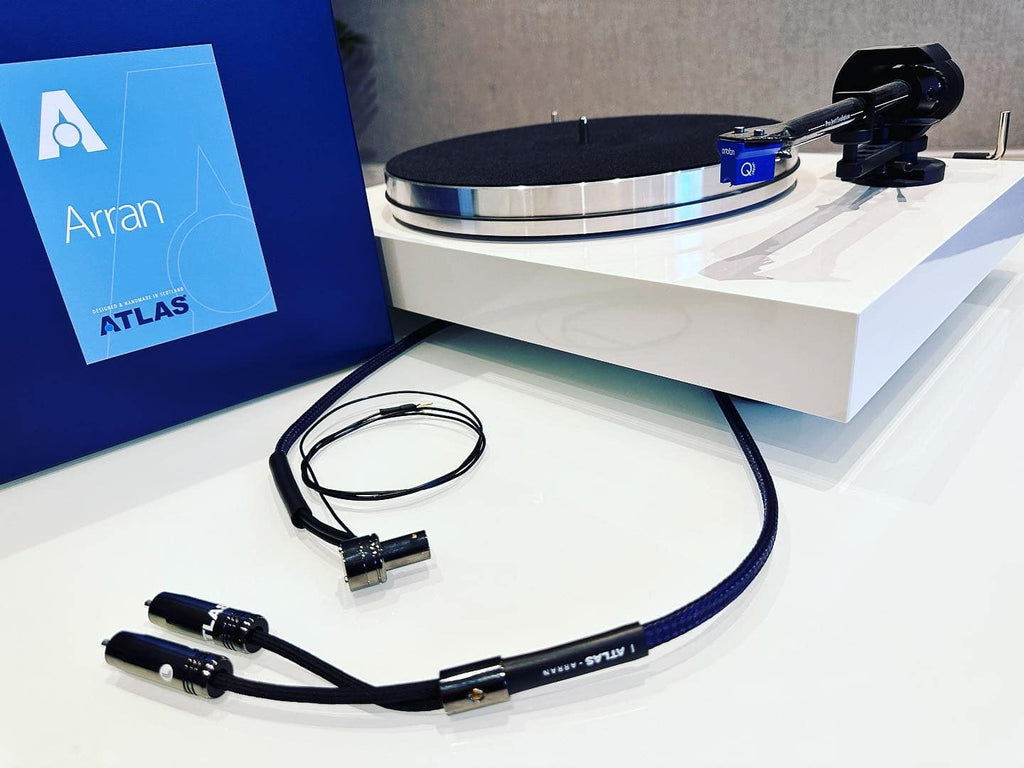

ATLAS Arran Assist Ultra RCA Phono/Turntable Cable

Available in 2 different configurations - see below:

1) Arran Ultra L RCA Turntable features RCA termination at both ends along with a ground wire

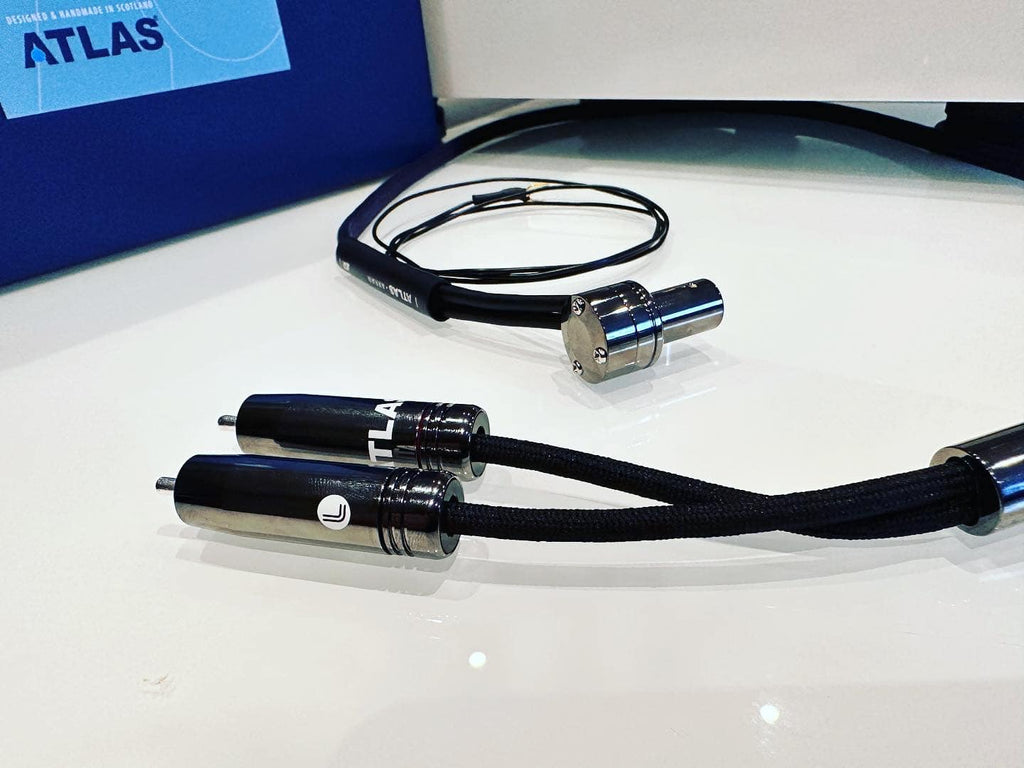

2) Arran Assist Tonearm features a 5 pin connector at the tonearm end and Ultra L RCA connectors with a ground wire at the other.

Based on our highly regarded Arran Ultra L interconnect, this Arran Ultra RCA Phono/Turntable is an extremely low-noise cable specifically designed for the very low signal output levels of ‘high-end’ phono cartridges.

By achieving maximum signal transfer with minimum susceptibility to the spurious RF and EM interference which pervade our homes, the Arran Ultra RCA Turntable presents an extremely low background noise floor, allowing maximum expression of dynamics, depth and subtlety.

What were the main factors we were trying to overcome?

✓ Distortion of the super delicate phono signal

✓ Unpredictable nature of the cables RFI performance

✓ Isolation between channels

✓ bandwidth limitation

Atlas wanted to design a tone arm cable with a more efficient, wider bandwidth and deliver a more open and accurate sound. RFI (Radio Frequency Interference) is a major factor in cable design, especially now with the amount of ambient electrical wireless signals present in the majority of homes. To combat RFI, a metallic barrier (or braid) is encased around the insulated conductors and terminated at one end. Each channel (twisted pair) is individually wrapped in Al Mylar and then encased in a tightly woven copper screen. Both channels are independent of each other, increasing stereo separation and depth of image.

Atlas Arran Assist Tonearm Ultra L RCA key points:

• Superior Ohno Continuous Cast (OCC) copper conductor arrangement for improved Conductivity.

• Twin Independently balanced channels.
• Highly stabilised nitrogen gassed foamed polyethylene dielectric for higher velocity of Propagation.
• Low mass, high bandwidth Assist Tonearm plugs (straight and 90° versions available).
• Ultimate RCA performance with 3D printed Ultra Latik technology.
• Dedicated Assist Linn LP12 Tonearm plug options available.

The cable is supplied with a separate ground cable with spade earth tags.

A member of the team will contact you upon placing your order to confirm the 5 pin configuration (if required) before processing.
