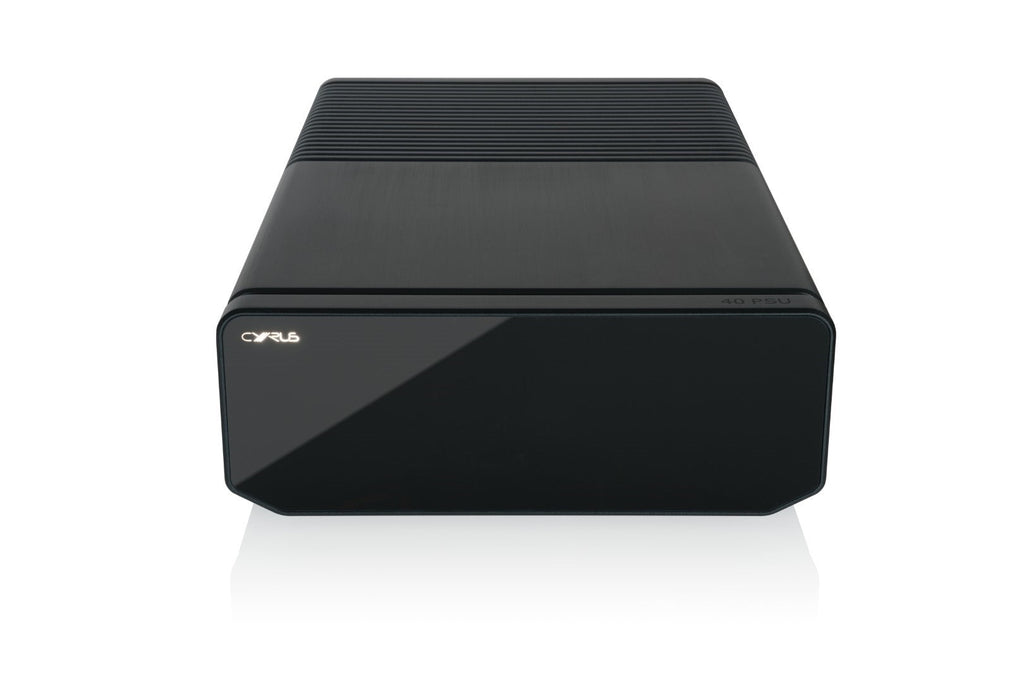

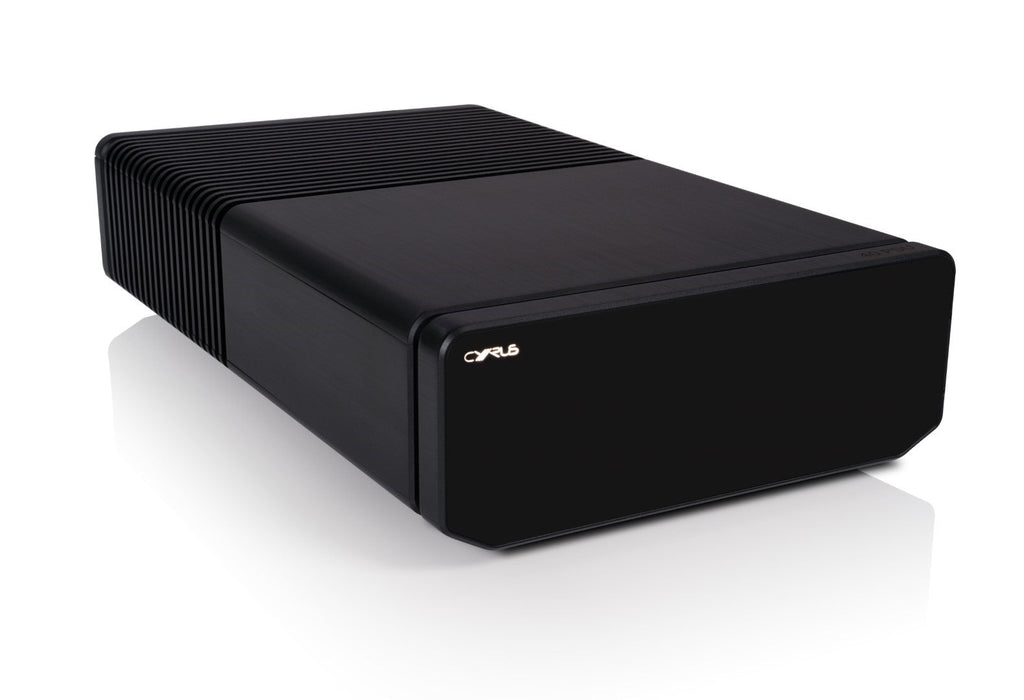

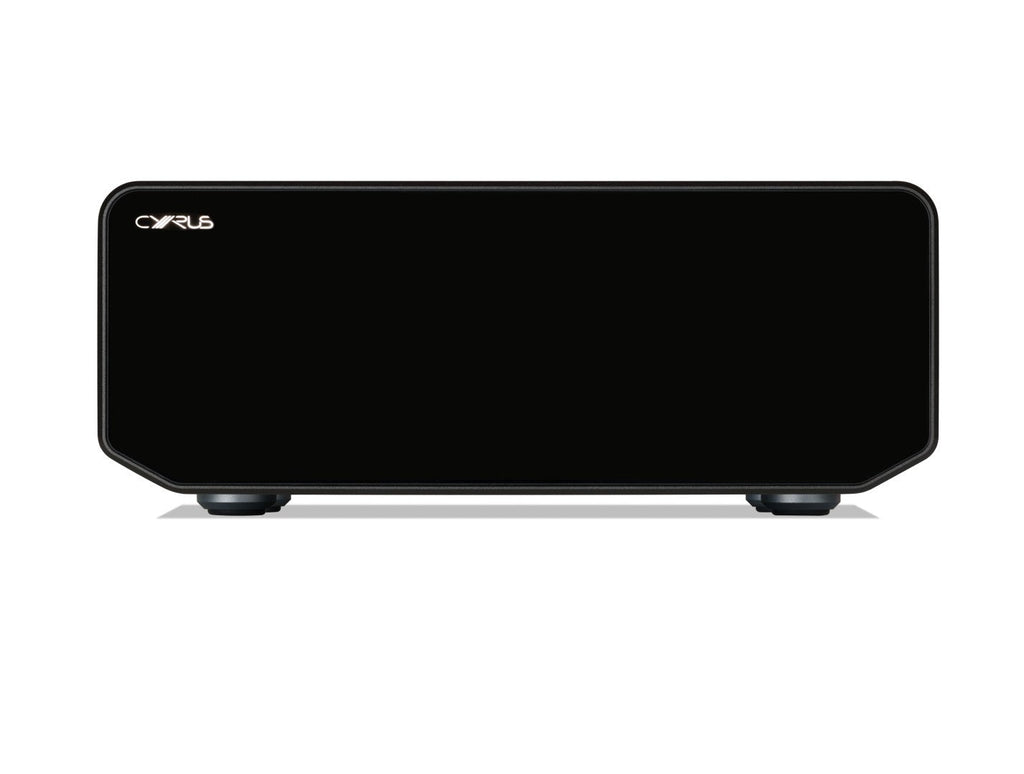

Cyrus Audio 40 PSU - Power Supply Upgrade

Cyrus have been designing external power supplies since the launch of the PSX back in the 80s, and the 40 PSU continues that strong tradition with what can only be described as a very intelligent little black box! Incorporating its own on-board micro-processor, the 40 PSU can be attached to all products available in the 40 series, communicating directly to consistently provide the best configuration of power from a full range of voltage output levels.

Providing multiple supplies, all the output voltages from the 40 PSU are digitally controlled internally, so are extremely stable and virtually noise free. Something else that is very good news for owners of current Cyrus products is that the 40 PSU and PSU-XR can be used across both ranges, so that has got to be something to smile about.

Sound Enhancements

The sole purpose of the 40 PSU is to work seamlessly alongside the internal power supply of the host product to enhance the overall performance. We have highlighted the main sound improvements for each of the compatible host products below.

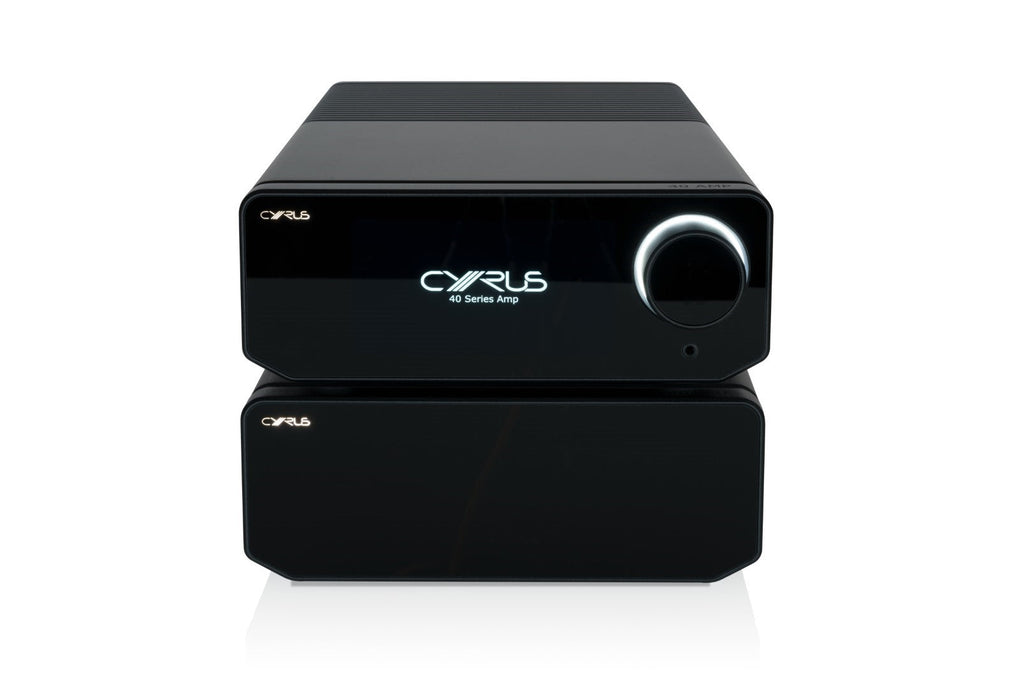

40 AMP

When connected to the 40 AMP, the 40 PSU provides the power amp section with a serious boost of clean power, further stiffening the main power supply rails to the amplifier, meaning that the amplified signal can more accurately track the input signal. You hear this accuracy in the music which becomes more transparent and more detailed. The Pre-Amp section is completely driven by the 40 PSU, again this means a stiffer supply – leading to greater accuracy.

This leaves the internal power supply to run the DAC section, and because it is now doing less work, the supply it can provide to the DAC is more robust.

In our listening tests we observed the following improvements on the 40 AMP, we got more weight, more authority, better detail, better attack, overall better control of rise and fall of notes, and more accurate timing.

40 CD

When connected to the 40 CD, the 40 PSU powers the master clock, which helps to improve jitter. It also powers the CD motors, which is electrically speaking a very noisy circuit as the motors are constantly changing velocity.

Taking this supply outside the box lowers the overall noise within the box, helping the player to perform even more accurately.

The 40 PSU also takes over powering the analogue side of the DAC, with the internal supply powering the digital side of the DAC.

Again, this separation of power supplies helps to limit the transfer of noise. Sonically, we get improved timing, better control of base notes, more accurate edges and control of notes and enhanced imagery.

40 ST

When connected to the 40 ST, the 40 PSU takes over powering the analogue side of the DAC and the BluOS network module. This provides those sections of the circuit with a cleaner more stable supply of power improving the audio performance of the streamer, bringing out new levels of detail in the music as well as offering greater control.

You will also find that it creates more space round the instruments and vocals providing greater depth and a holographic soundstage.

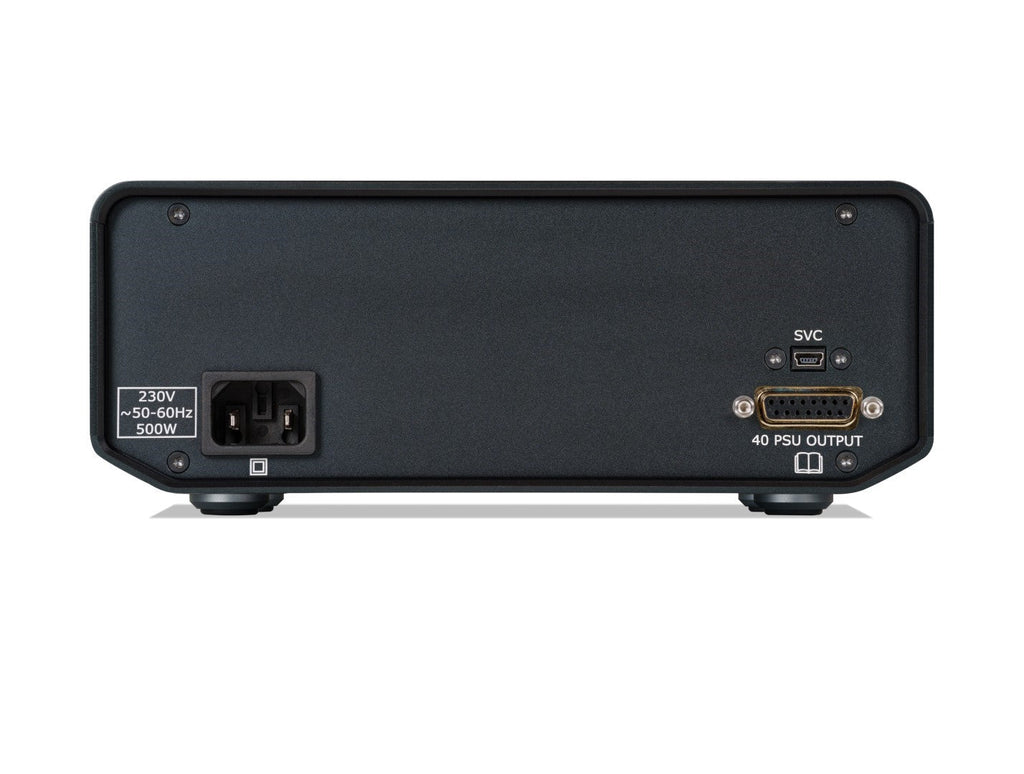

There are five independent power supplies in the 40 ? PSU. All five power outputs route to a connected 40 series component through a multi-way umbilical cable:

A high capacity logic supply to power digital circuitry in a connected 40 series component.

Two fixed voltage power supplies that are intended to power sensitive, low voltage analogue circuitry.

Two variable voltage high capacity power supplies to feed power to low or high consumption analogue circuitry.

The variable power supplies also have two unregulated voltage settings that can be applied to boost the power supply in high consumption circuitry such as power amplifiers.

Specification

Low voltage supply - Standby mode +5V DC

Low voltage supply - Operational +5V DC

Fixed voltage supply - Standby mode 0V

Fixed voltage supply - Operational +24V DC

Variable supply - Standby mode 0V

Variable supply - Regulated +10V to +45V DC

Variable supply - Unregulated +45V or +56V

DC

RJ45 Ethernet For Firmware Updates

Mini USB For Firmware Updates

Size (H x W x D) 88 x 220 x 365 mm

(3.46” x 8.66” x 14.37”)

Weight 9.4kg (21lbs)

EAN 230V 5060020434877

5 Year Warranty
