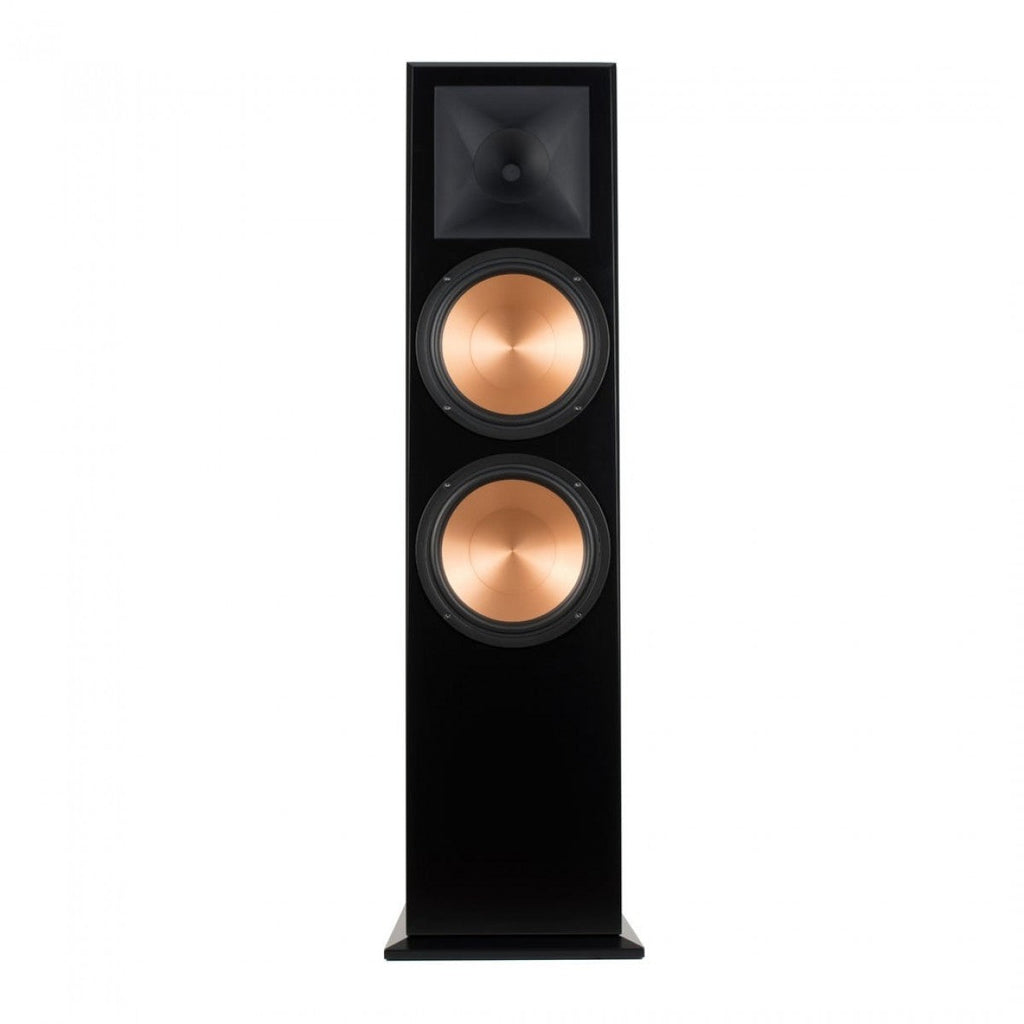

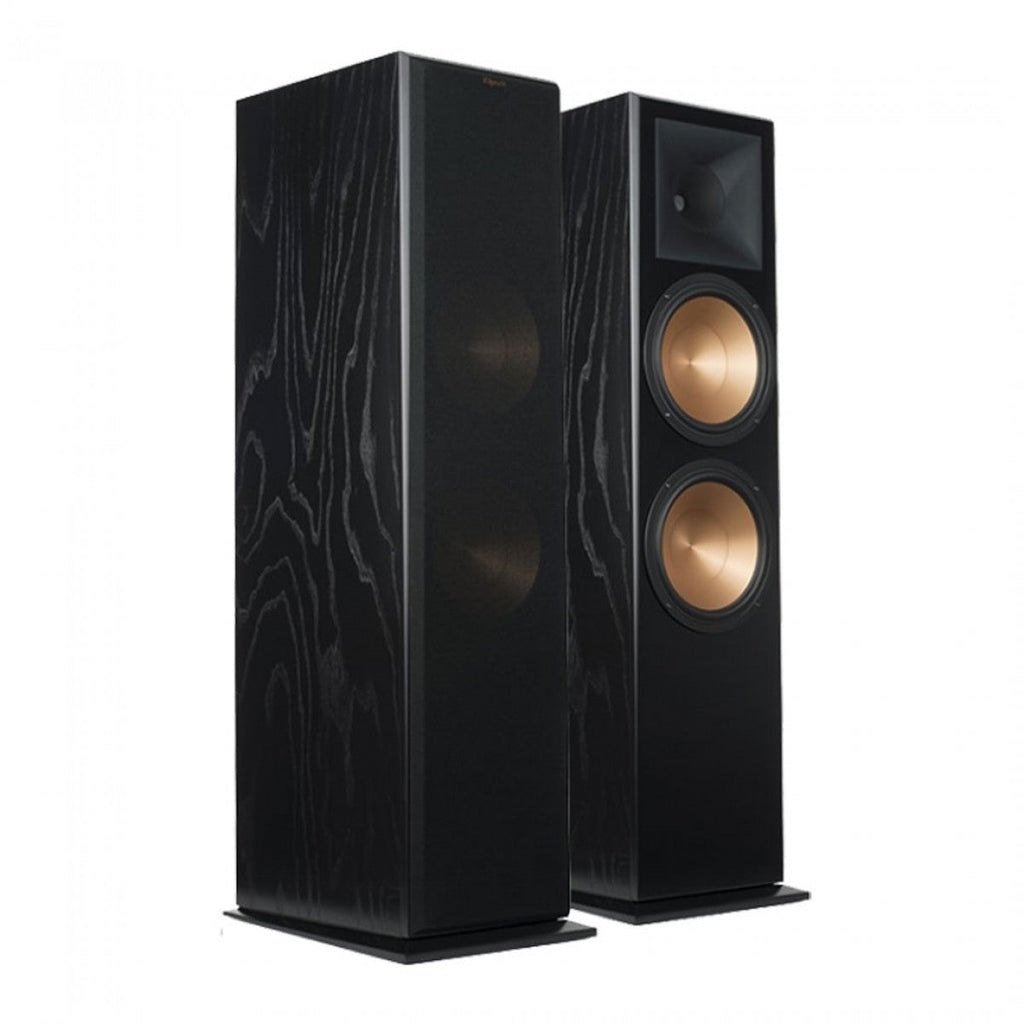

Klipsch RF-7 III Reference Floorstanding Speakers
A legend in sound – Klipsch Reference RF-7 III tower speakers come in furniture-grade cherry and black wood veneer finishes, enabling you to experience the true detail, power and emotion of cinematic and concert performances from the comforts of home.
Ships on a pallet due to size.
- Beautiful furniture-grade wood veneer cabinet
- Dynamic 1.75″ titanium Tractrix™ horn-loaded compression driver
- Dual 10″ high-output Cerametallic woofers with premium cast aluminum baskets
- Fills large rooms with movie theater/concert quality sound
- Designed & Assembled in the USA
Featuring an all-new titanium compression driver, 90x90 compressed molded-rubber Tractrix horn, redesigned bifurcated cabinet, cast basket Cerametallic woofers and finished in a premium, furniture-grade wood veneer - the RF-7 III floorstanding speaker champions the legendary, high-performance Klipsch sound.
90° x 90° TRACTRIX HORN
The redesigned Tractrix Horn utilises a circular horn throat paired to a square horn mouth to further improve high-frequency response and extension, while enhancing imaging and dynamics. The compressed moulded rubber construction adds high frequency damping to reduce harshness and improve detail. This creates the cleanest, most natural sound possible.
NEW 1 3 /4 TITANIUM DIAPHRAGM COMPRESSION DRIVER
The compression driver features a new phase plug design to improve phase coherency at the throat of the horn, resulting in improved sound pressure linearity at high frequencies.
SPUN COPPER CERAMETALLIC WOOFERS
Cerametallic woofers represent the pinnacle of Klipsch driver design, maintaining exceptional rigidity, and lightweight construction, for minimal cone breakup and distortion. When paired with the Tractrix horn-loaded compression driver, it provides speaker efficiency highest in its class.
DUAL CHAMBERED ENCLOSURE DESIGN
The new bifurcated enclosure allows each 10” driver and port to work independently from the other. This improves the linearity of both drive systems, and minimises standing wave problems inside the cabinet that can cause frequency anomalies in the sensitive midrange frequencies.

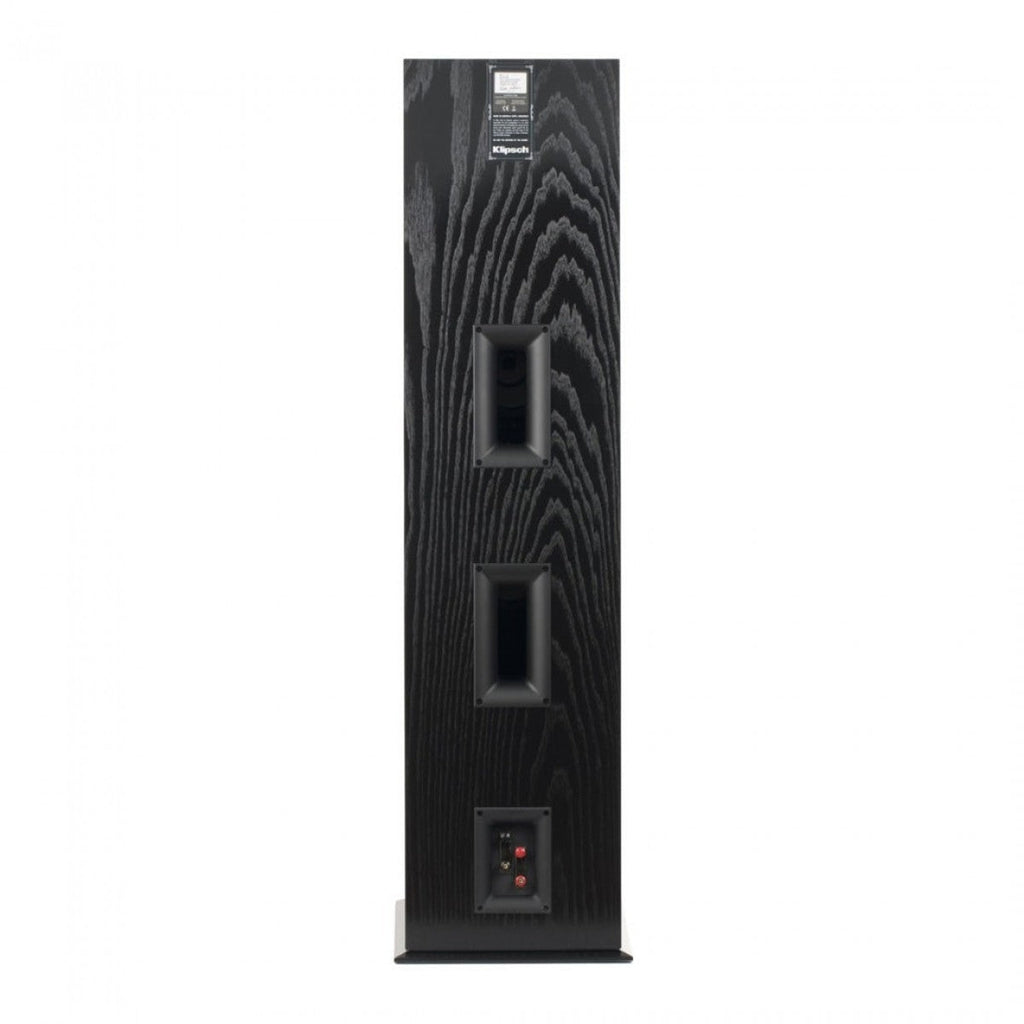

NEW TRACTRIX PORT
Utilising Tractrix geometry, the new RF-7 III ports allow for the most efficient air transfer from the cabinet — for the cleanest, most powerful low frequency response on the market.
CAST FRAME WOOFER DESIGN
Each 10” woofer feature a heavy-duty cast aluminium frame for resonant-free operation. In addition, each woofer incorporates a dual shorting-ring magnet structure design to eliminate modulation of the magnetic flux resulting in improved linearity of cone movement.
FURNITURE GRADE WOOD VENEERS
RF-7 III enclosures all utilise furniture grade wood veneers, and are available in Black Ash, Walnut & Cherry
DESIGNED AND MADE IN THE USA USING DOMESTIC AND IMPORTED COMPONENTS
The Klipsch RF-7 III speaker is a testament to the quality that Klipsch demands from each and every one of its audio products. The RF-7 III enclosure is made in the USA, by proud craftsmen in Hope, Arkansas. Just like Paul W. Klipsch (PWK) intended.
| Frequency Response | 35-25kHz +/- 3dB |
|---|---|
| Power Handling | 250W / 1000W peak |
| Sensitivity | 100dB @ 2.83V / 1M |
| Nominal Impedance | 8 Ω Compatible |
| High Frequency Horn | 8.5” square 90° x 90° Tractrix® Horn |
| High Frequency Driver | 1.75” (4.45cm) titanium diaphragm compression driver |
| Crossover Frequency | 1,300 Hz |
| Low Frequency Driver | Two 10” (25.4cm) Cerametallic cone woofers |
| Inputs | Dual binding posts / bi-wire / bi-amp |
| Enclosure Type | Dual chambered, bass-reflex — via dual rear-firing Tractrix ports |
| Dimensions including plinth H x W x D in mm | 1245 x 352 x 454 |
| Weight in kg | 44.1 |
