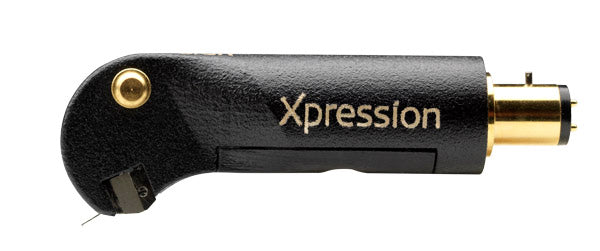

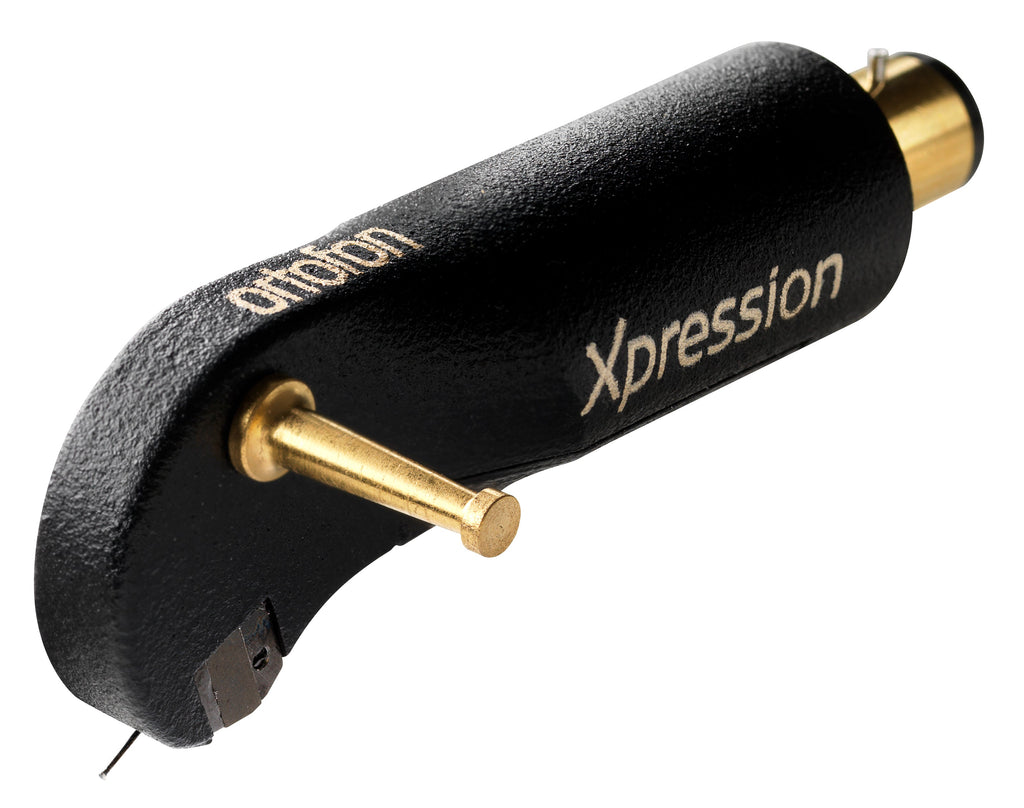

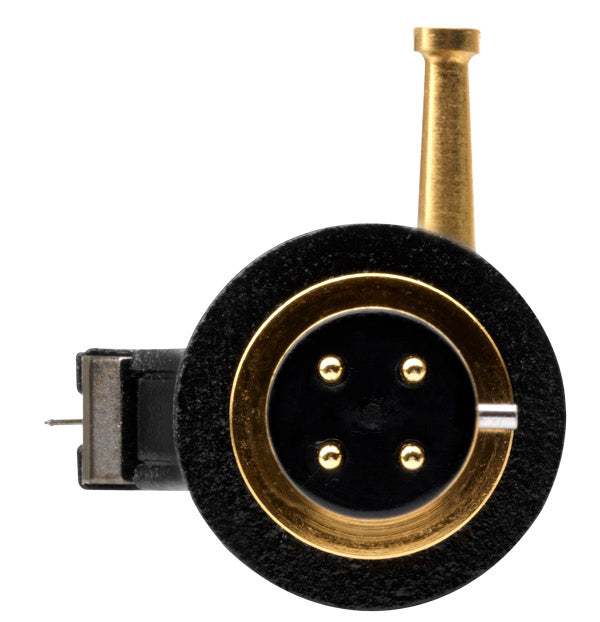

Ortofon MC XPRESSION - Moving Coil Cartridge

Exclusive Series

Ships usually within 24 hours - this high end product is ordered upon request.

This state-of-the-art product, representative of numerous Ortofon design elements and ideas, is truly exemplary of the highest degree of performance possible in contemporary analogue playback technology.

Features

• Exclusive Series-level sound reproduction from a cartridge that works like an SPU
• Moving Coil cartridge design
• Unique SPU-inspired SLM stainless steel body
• Flagship nude Ortofon Replicant 100 diamond stylus
• Superior boron cantilever

THE MC XPRESSION

The Xpression cartridge bridges the gap between SPU-type cartridges and High-End cartridges like the MC A90 and the MC Windfeld, which are designed for headshell mounting. The result is a high-performance moving coil cartridge with the convenience of a standard headshell connector. This method of connection provides a simple and elegant method of directly connecting the generator and tonearm via the Xpression’s one-piece body.

EASE OF USE

Since the cartridge length is identical to that of an SPU, the Xpression can easily be fitted onto tonearms without additional concern for proper alignment. The cartridge height is likewise identical to the SPU height, which makes further VTA adjustments unnecessary.

The length of the cartridge ensures a proper match with SME-mount type tonearms (e.g. SME, Grace, Fidelity Research, SAEC and Micro Seiki brands), while the mass and compliance properties of the Xpression ensure that a proper match will be achieved with any SPU-compatible arm. The Xpression can ideally be combined with the Ortofon TA-110 tonearm.

NEODYMIUM MAGNET

The magnet system is based on the designs used in such acclaimed cartridges as the MC Windfeld and the MC A90. It is based on an extremely strong, compact neodymium magnet, which makes the generator system both compact and lighter through its minimal dimensions.

Ortofon’s Field Stabilising Element (FSE), a small cylinder of conductive material strategically placed inside the magnet system, guarantees that the force field remains stable regardless of the movement of the armature. FSE improves the channel separation, while at the same time minimising dynamic distortion and intermodulation. The result is seen in the Xpression's fantastic dynamics and even more elbow room between the musicians.

You simply experience more drama and greater breadth, height and depth in the sound scenario!

ULTRA-ACCURATE LINEAR REPRODUCTION

The Xpression features an ultra-fine and extra polished version of the unique Ortofon Replicant 100 stylus on Boron Cantilever.

One of the preconditions for linear reproduction with a wide frequency range and optimal tracking performance is a diamond - the shape of which is as close as possible to the original cutting needle.

This diamond is incredibly small and light but has an extraordinarily large vertical contact surface despite its minimal radius of rounding. Correctly fitted at a vertical angle of 23 degrees, an Ortofon Replicant Stylus 100 will read the musical information in the grooves of a record with a greater degree of accuracy than any other kind of needle.

BENEFITS OF HIGH-END MATERIALS

Adding to the list of important components is Ortofon’s patented Wide Range Damping (WRD) system. In this system, a small, heavy platinum disc is sandwiched between two rubber absorbers, both with different properties. This ensures not only an exceptional tracking performance, but also creates a perfect damping through the entire frequency spectrum.

By combining the utilization of the Selective Laser Melting (SLM) process and our WRD system, we are confident that the perfect mechanical integration of this cartridge with your tonearm will result in a significant and breathtaking increase in dynamics, staging, resolution, and richness. Ultrahigh purity silver is used for the internal wiring between generator and standard headshell connector.

STYLUS GUARD

The Xpression ships with a newly engineered stylus guard which is designed to be easily replaced and removed without risking contact to the fragile stylus assembly. The new stylus guard design also offers a safe and effective functionality. To avoid accidental damage to the stylus or cantilever please mount the enclosed stylus guard onto the cartridge whenever the cartridge is not in use.
