SFX CAT6 UTP Eca LSZH 305m easy pull box
£175.00

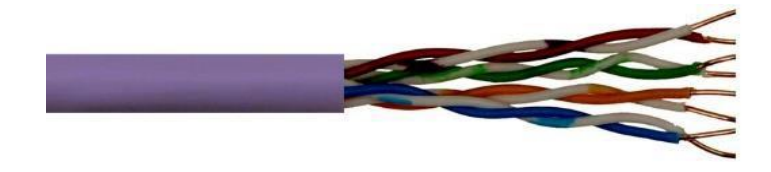

Premium Category 6 UTP LSZH Network Cable
Our premium Category 6 un-shielded (UTP) low smoke and halogen free (LSZH) network cable is supplied in easy pull boxes of 305 metres and is clearly metre marked for easy cable identification.
The cable is tested to meet and exceed the Category 6 standard and is suitable for installation in densely populated buildings such as schools, offices and retail units where a halogen free cable is required for fire and building regulations.
Features
- Easy pull 305 metre boxes
- Solid coppers conductors
- Clearly metre marked
- Low smoke and halogen free sheath
Specification
| General | |
| Inner Conductor | 23 AWG plain copper |
| Insulation | High density polyethylene |
| Construction | 4 twisted pairs cabled together with spline |
| Colour Code | Pair 1:White/Blue-Blue/White Pair 2:White/Orange-Orange/White Pair 3:White/Green-Green/White Pair 4:White/Brown-Brown/White |
| Jacket | Low Smoke Zero Halogen |
| Overall Diameter | 5.5 mm +/- 0.2 mm |
| Weight (Kg/Km) | 39.1 (PVC/PE)/41.2 (LSZH) |
| Min Bending Radius Installation | 50 mm |
| Min Bending Radius Installed | 25 mm |
| Impedance | 100 Ohm +/- 15 Ohm |
| Capacitance | 5.6nF/100 m |
| DC Resistance | 9 Ω/100 m |
| Velocity Ratio | 69% |
| Operating Temperature Range | -20°C to +60°C |
| Installation Temperature Range | 0°C to +50°C |
| Conforms to | ANSI/TIA-568-C Category 6 Specification LSZH Jacket Conforms to IEC 60332-1, IEC 61034 and IEC 60754 |
