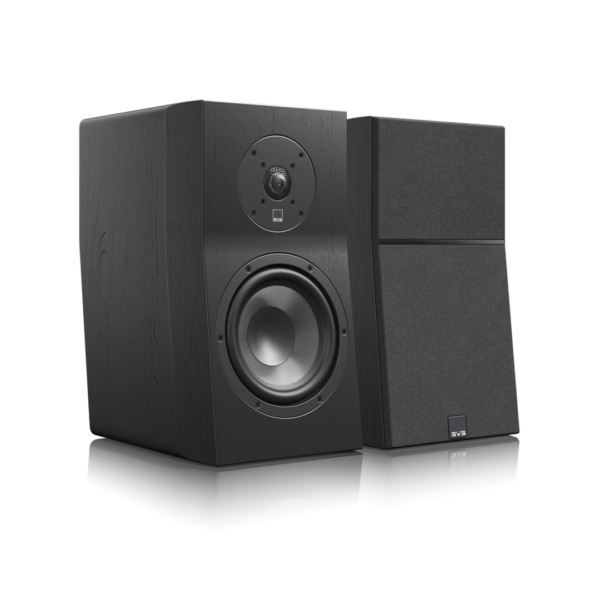

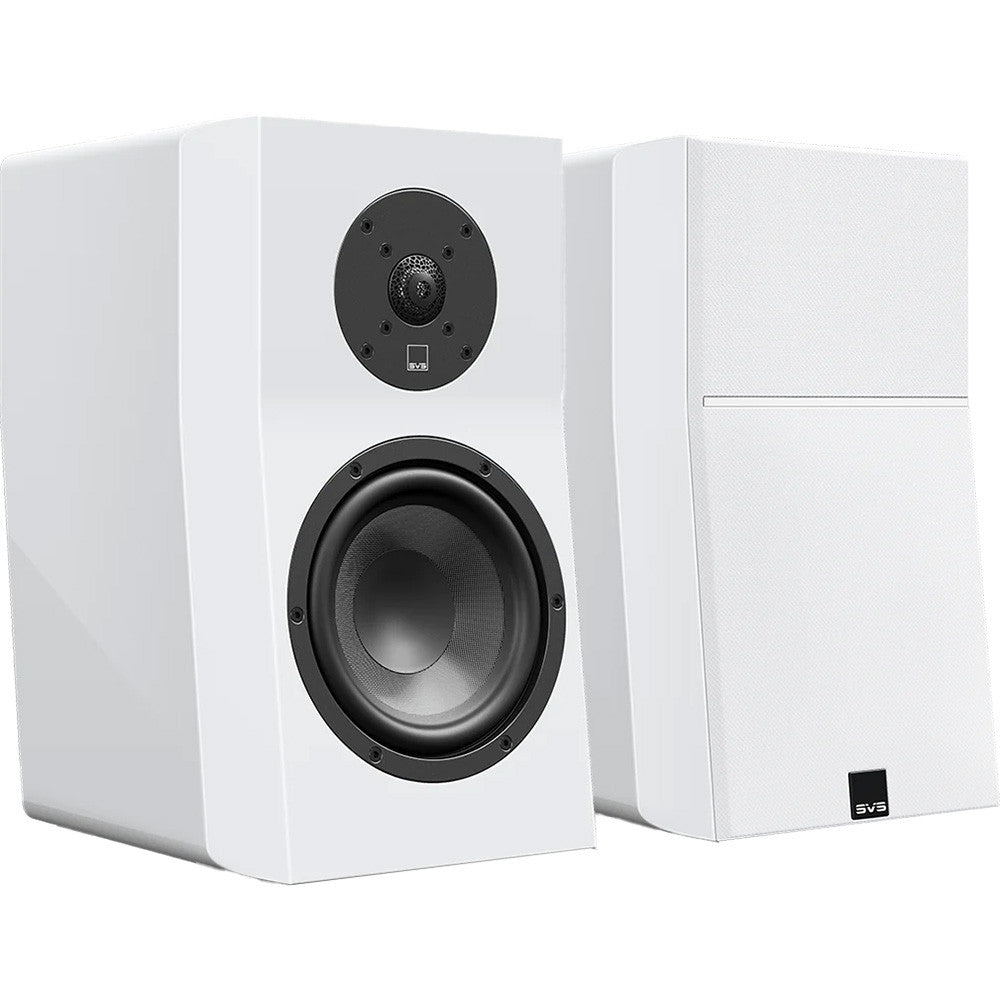

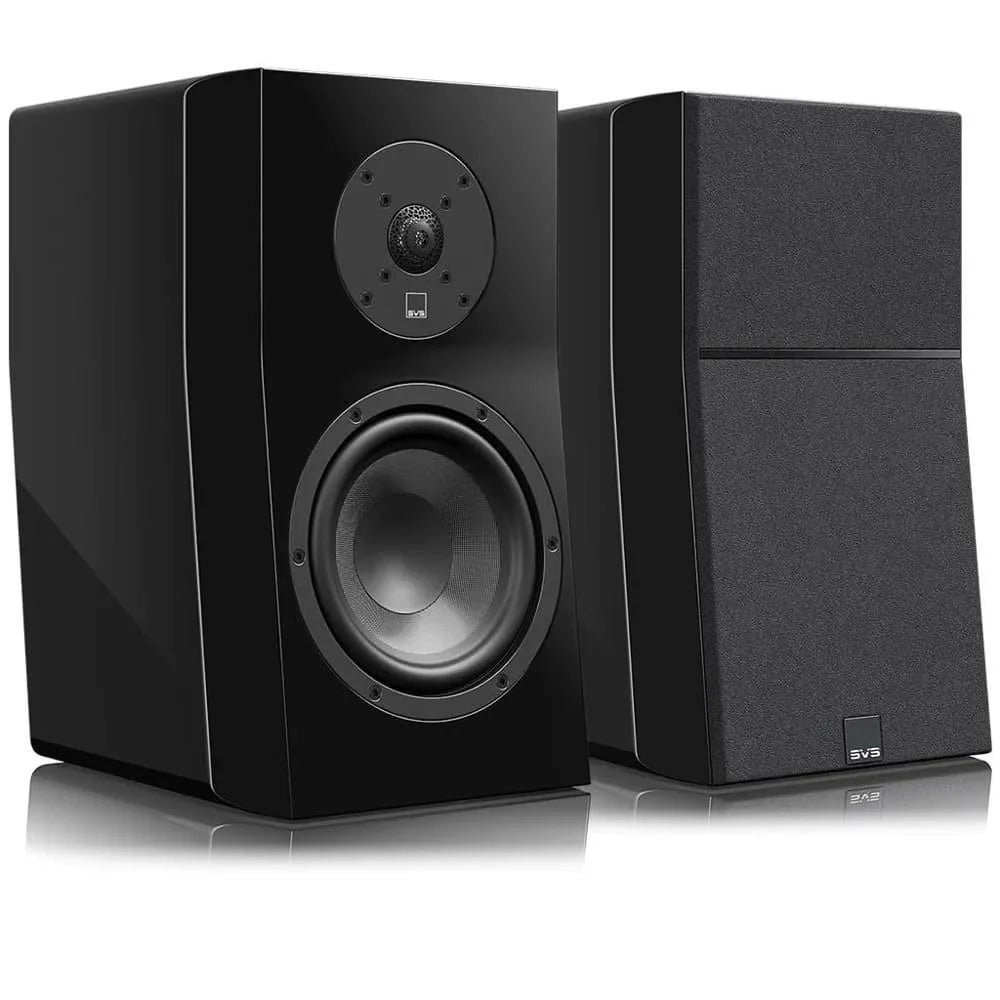

The SVS Ultra Evolution Bookshelf is a precision-engineered speaker designed to deliver high-fidelity sound in a compact form. Its one-inch diamond-coated aluminium tweeter uses an advanced vapour deposition process to enhance rigidity without adding weight, resulting in crystal-clear highs free from distortion. Paired with an organic cell lattice diffuser, it ensures wide dispersion, so every seat in the room experiences pristine detail. Whether it's the delicate shimmer of cymbals or the subtle texture of a vocal performance, this speaker delivers an open and transparent listening experience.
A 6.5-inch glass fibre composite woofer provides deep, controlled bass and rich midrange clarity, maintaining accuracy even at high volumes. The time-aligned cabinet design ensures that sound from both drivers reaches your ears simultaneously, creating a precise and immersive soundstage. Built with a heavily braced, resonance-free enclosure and a premium crossover, the Ultra Evolution Bookshelf blends every frequency, making it perfect for both music lovers and home cinema enthusiasts.
Features
- Diamond-coated tweeter for crisp, detailed high frequencies
- Dual woofer design for rich, distortion-free bass
- Time-aligned drivers for a natural, cohesive soundstage
- Rigid aluminium baskets for controlled, accurate sound reproduction
- Advanced waveguide for smooth, even dispersion
- Vented voice coils for improved power handling and efficiency
- Precision-tuned cabinet for reduced resonance and cleaner audio
- Rear-firing port for optimised airflow and extended bass response
- Magnetic grille and compact design for versatile placement
Specifications
Frequency Response / Acoustic Data
| Frequency Response |
40Hz to 40kHz (+/-3 dB) |
| Nominal Impedance |
6 ohms |
| Sensitivity |
87dB (2.83V @ 1 meter full-space, 300Hz – 3kHz) |
| Recommended Amplifier Power |
20 – 150 watts |
Speaker Specs
| Binding Posts |
Dual gold-plated 5-way |
| Ports |
2” wide-flared rear-firing port |
| Grille |
Cloth grille with magnetic retention system |
| Feet |
Elastomer stick-on bumper feet |
| Cabinet Dimensions (H x W x D) |
378 x 220 x 285.7 mm |
| Overall Dimensions (H x W x D) (includes grille) |
382 x 220 x 295.6 mm |
| Shipped Dimensions (H x W x D) |
607 x 485 x 417 mm |
| Weight Packaged |
18.9 kgs (pair) |
| Weight Unboxed |
8.6 kgs (per speaker) |
Driver Specs
| Tweeter |
1” Diamond Coated Tweeter |
| Tweeter Features |
FEA-optimized Organic Cell Lattice Diffuser |
| Tweeter Leads |
Silver tinsel leads |
| Woofer |
6.5” Composite Glass-Fibre Cone |
| Woofer Basket |
Precision-cast aluminium alloy |
| Woofer Coil |
Vented aluminium voice coil |
Crossover & Cabinet Specs
| Crossover Type |
2-way crossover |
| Tweeter-to-Woofer Crossover |
1.8 kHz |
| Cabinet Architecture |
Time-aligned cabinet geometry |
| Baffle Design |
Chamfered front baffle and flush-mounted drivers |
| Driver Baffle Thickness |
Extra-thick 1” (25mm) driver baffle |
| Cabinet Construction |
FEA-optimized ¾” (18mm) cabinet construction, extensive bracing, and acoustic insulation. |
